| 加工定制 | 是 |
|---|---|
| 连接形式 | 螺纹 |
| 材质 | 青铜 |
| 阀瓣开启高度 | 全启式安全阀 |
| 结构形式 | 弹簧式 |
| 公称通径 | DN15-50（mm） |
| 适用介质 | 蒸汽 |
| 标准 | 日标 |
| 流动方向 | 单向 |
| 零部件及配件 | 阀体 |
| 形态 | 柱塞式 |
| 压力环境 | 常压 |
| 类型(通道位置) | 直角式 |
| 阀体构造 | 不封闭式 |
| 规格 | DN50,DN15 |
| 品牌 | 台湾317阀门 |
| 型号 | SV-B29(S3W-LR) |
台湾317青铜安全阀SV-B27、S3W-A
(SV-B27) BRonZE SAFETY RELIEF VALVE (OLD MODEL: S3W-A) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

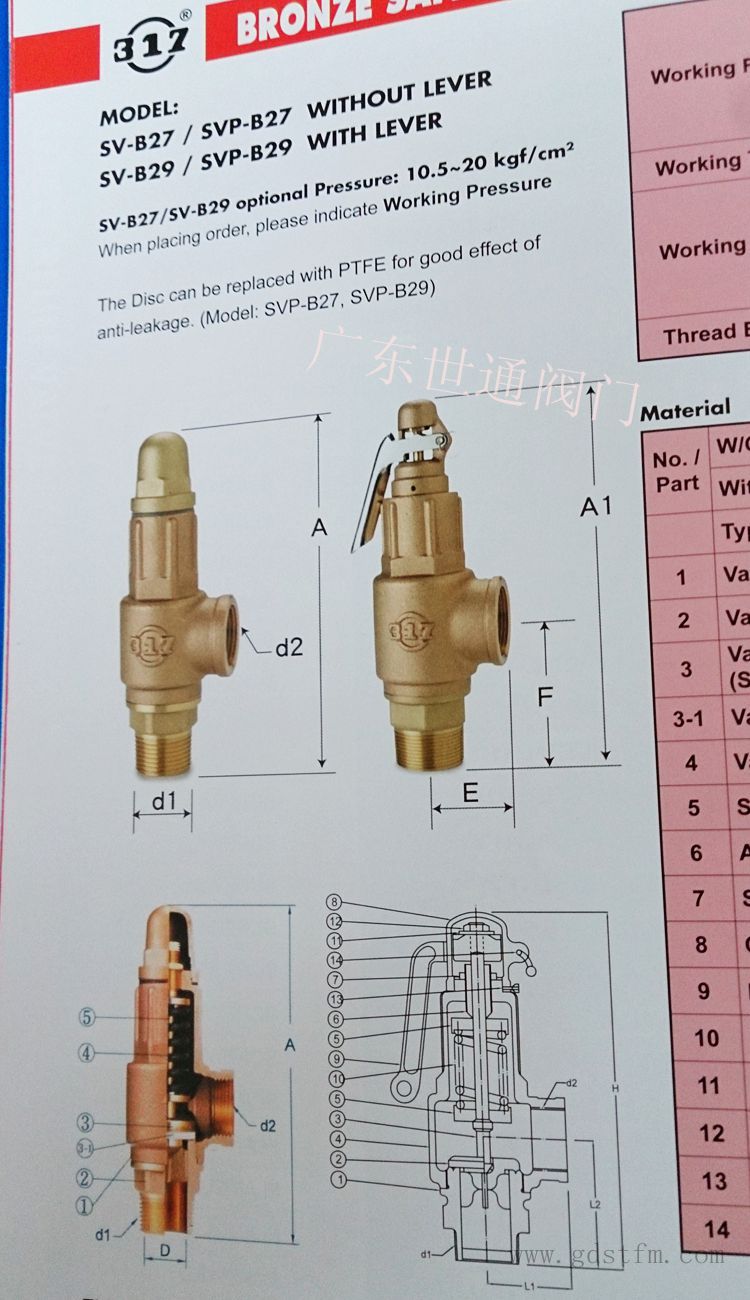

MODEL: SV-B27 / SVP-B27 WITHOUT LEVER MODEL: SV-B29 / SVP-B29 WITH LEVER
SV-B27/SV-B29 optional Pressure: 10.5~20 Kgf/cm2 When placing order, please indicateWorking Pressure
The Disc can be replaced withPTFEfor good effect of anti-leakage. (Model: SVP-B27, SVP-B29)
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
This type of safety valve is characterized by regulating of pressure in valve rising and blowing-out when actuated and is the smallest and lightest valve, and also can be used in non-corrosive gases (air, oxygen, nitrogen, etc.) steam and liquids, such as water and oil. The sizes shown in the chart are subject to change without notice.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
