| 材质 | 不锈钢 |
|---|---|
| 产地 | 江苏 |
| 流量 | 50 |
| 驱动方式 | 电动 |
| 认证 | ISO9001-2000 |
| 适用范围 | 氯碱、纯碱工业；医学、化肥、农药；石油化工、化纤、造纸工业；染料工业；环保工程及水处理系统 |
| 性能 | 耐腐蚀 |
| 扬程 | 32 |
| 原理 | 离心泵 |
| 执行质量标准 | 国标 |
| 泵轴位置 | 卧式 |
| 叶轮吸入方式 | 单吸式 |
| 品牌 | 慧科 |
| 型号 | HCZ |
一、HCZ型化工泵性能范围（按设计点）
流量： Q 1.6-1500m3/h
扬程： H 5-125m
工作压力： P 小于等于 1.6MPa
工作温度： t -20 ～ +150 摄氏度
二、HCZ型化工泵适用行业
氯碱、纯碱工业；医学、化肥、农药；石油化工、化纤、造纸工业；染料工业；环保工程及水处理系统。三、HCZ型化工泵结构形式

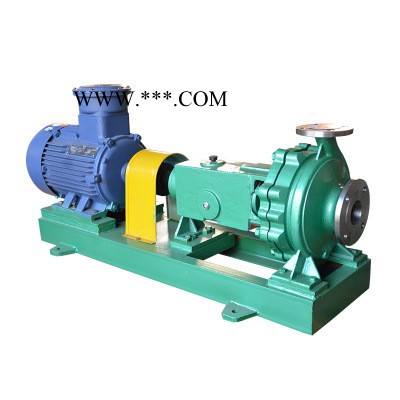

卧式后开门结构，泵头与电机采用联轴器连接，安装在底板上，叶轮为后开式，三只轴承，轴封采用外装式机械密封，设有冷却装置，轴承体的油位用油镜观察；结构紧凑合理。该泵在泵体上铸有支脚，可承受来自管路的荷载并直接传给基础，这样泵转子不会因泵承受荷载而产生弯曲，
从而保证了承载和机械密封具有很长的使用寿命。维修时不需将与泵体相连的管路打开，只要打开托架与泵体的螺栓， 将两者分开就可维修叶轮
和机械密封，简易方便。
泵的旋转方向：从电机端朝泵看，顺时针方向旋转。
四、HCZ型化工泵特点
该系列泵是我公司引进国外先进技术研制而成,可输送含有固体颗粒，易结晶的介质，耐温、耐腐、无堵塞。材质可根据具体工况选择。
五、密封型式
机械密封或填料密封。
六、HCZ化工流程泵性能参数
| 型号 | 泵额定转速n=2900r/min | 泵额定转速n=1450r/min | ||||||||
| 流量 | 扬程 | 汽蚀余量 | 效率 | 介质比重为1.35时 配用电机功率及型号 | 流量 | 扬程 | 汽蚀余量 | 效率 | 介质比重为1.35时 配用电机功率及型号 | |
| m3/h | m | m | % | m3/h | m | m | % | |||
| HCZ32-160 | 7.5 | 34.5 | 2 | 62 | Y112M-2 4KW | 3.75 | 8.6 | 2 | 49 | Y90S-4 1.1KW |
| 12.5 | 32 | 2 | 6.3 | 8 | 2 | |||||
| 15 | 30 | 2.5 | 7.5 | 7.5 | 2.5 | |||||
| HCZ32-200 | 7.5 | 51.8 | 2 | 51 | Y132S2-2 7.5KW | 3.75 | 12.9 | 2 | 47 | Y90L-4 1.5W |
| 12.5 | 50 | 2 | 6.3 | 12.5 | 2 | |||||
| 15 | 48 | 2.5 | 7.5 | 12 | 2.5 | |||||
| HCZ32-250 | 7.5 | 82 | 2 | 40 | Y160M2-2 15KW | 3.75 | 20.5 | 2 | 37 | Y100L1-4 2.2KW |
| 12.5 | 80 | 2 | 6.3 | 20 | 2 | |||||
| 15 | 78.5 | 2.5 | 7.5 | 16.2 | 2.5 | |||||
| HCZ40-160 | 15 | 34.2 | 2 | 63 | Y132S2-2 7.5KW | 7.5 | 8.55 | 2 | 60 | Y90L-4 1.5W |
| 25 | 32 | 2 | 12.5 | 8 | 2 | |||||
| 30 | 30 | 2.5 | 15 | 7.5 | 2.5 | |||||
| HCZ40-200 | 15 | 53.2 | 2 | 60 | Y160M1-2 11KW | 7.5 | 13.3 | 2 | 57 | Y100L1-4 2.2KW |
| 25 | 50 | 2 | 12.5 | 12.5 | 2 | |||||
| 30 | 47.6 | 2.5 | 15 | 11.9 | 2.5 | |||||
| HCZ40-250 | 15 | 81.2 | 2 | 50 | Y180M-2 22KW | 7.5 | 20.3 | 2 | 48 | Y100L2-4 3KW |
| 25 | 80 | 2 | 12.5 | 20 | 2 | |||||
| 30 | 78.4 | 2.5 | 15 | 19.6 | 2.5 | |||||
| HCZ40-315 | 15 | 126.8 | 2 | 50 | Y200L2-2 37KW | 7.5 | 32.4 | 2 | 45 | Y132S-4 5.5KW |
| 25 | 125 | 2 | 12.5 | 32 | 2 | |||||
| 30 | 124 | 2.5 | 15 | 31.7 | 2.5 | |||||
| HCZ50-160 | 30 | 36 | 2 | 73 | Y160M1-2 11KW | 15 | 9 | 2 | 70 | Y90L-4 1.5KW |
| 50 | 32 | 2.3 | 25 | 8 | 2.3 | |||||
| 60 | 28.4 | 3.3 | 30 | 7.2 | 3.3 | |||||
| HCZ50-200 | 30 | 55.2 | 2 | 72 | Y160L-2 18.5KW | 15 | 13.5 | 2 | 70 | Y100L1-4 2.2KW |
| 50 | 50 | 2.5 | 25 | 12.5 | 2 | |||||
| 60 | 45.2 | 3.2 | 30 | 11.5 | 2.5 | |||||
| HCZ50-250 | 30 | 84 | 2.5 | 64 | Y200L2-2 37KW | 15 | 21 | 2 | 59 | Y112M-4 4KW |
| 50 | 80 | 2.5 | 25 | 20 | 2 | |||||
| 60 | 75 | 2.5 | 30 | 18.8 | 2.5 | |||||
| HCZ50-315 | 30 | 128 | 2.5 | 60 | Y280S-2 75KW | 15 | 32.5 | 2 | 58 | Y132M-4 7.5KW |
| 50 | 125 | 2.5 | 25 | 32 | 2.5 | |||||
| 60 | 123 | 3 | 30 | 31.5 | 3 | |||||
| HCZ65-160 | 60 | 37 | 3.8 | 74 | Y180M-2 22KW | 30 | 9.25 | 3 | 68 | Y100L1-4 2.2KW |
| 100 | 32 | 4.3 | 50 | 8 | 3.4 | |||||
| 120 | 28 | 5 | 60 | 7 | 3.7 | |||||
| HCZ65-200 | 60 | 56 | 3.4 | 73 | Y200L2-2 37KW | 30 | 14 | 2.5 | 73 | Y112M-4 4KW |
| 100 | 50 | 3.9 | 50 | 12.5 | 2.5 | |||||
| 120 | 44 | 5.2 | 60 | 11 | 3 | |||||
| HCZ65-250 | 60 | 88 | 30 | 71 | Y250M-2 5.5KW | 30 | 22 | 2.5 | 67 | Y132S-4 5.5KW |
| 100 | 80 | 3.6 | 50 | 20 | 2.5 | |||||
| 120 | 74 | 4.5 | 60 | 18.5 | 3 | |||||
| 型号 | 泵额定转速n=2900r/min | 泵额定转速n=1450r/min | ||||||||
| 流量 | 扬程 | 汽蚀余量 | 效率 | 介质比重为1.35时 配用电机功率及型号 | 流量 | 扬程 | 汽蚀余量 | 效率 | 介质比重为1.35时 配用电机功率及型号 | |
| m3/h | m | m | % | m3/h | m | m | % | |||
| HCZ65-315 | 60 | 132 | 2.8 | 66 | Y280S-2 75KW | 30 | 33.5 | 2 | 62 | Y160M-4 11KW |
| 100 | 125 | 3.2 | 50 | 32 | 2 | |||||
| 120 | 119 | 4.2 | 60 | 30.5 | 2.5 | |||||
| HCZ80-160 | 130 | 16 | 4.7 | 76 | Y180M-2 22KW | 65 | 4 | 2.5 | 70 | Y112M-4 4KW |
| 150 | 22 | 5.3 | 70 | 5 | 2.8 | |||||
| 160 | 26 | 5.8 | 75 | 8 | 3.5 | |||||
| HCZ80-200 | 110 | 26 | 4.5 | 79 | Y225M-2 nbsp; 45KW | 65 | 9 | 2.5 | 73 | Y160M-4 11KW |
| 130 | 26 | 5 | 75 | 11 | 2.9 | |||||
| 150 | 38 | 5.8 | 80 | 12 | 3.6 | |||||
| HCZ80-250 | 130 | 47 | 3.7 | 80 | Y280M-2 90KW | 70 | 11 | 2 | 78 | Y160L-4 15KW |
| 150 | 55 | 4.5 | 85 | 17 | 2.3 | |||||
| 180 | 75 | 5.5 | 90 | 19 | 3 | |||||
| HCZ80-315 | 150 | 75 | 4 | 76.5 | Y315M1-2 132KW | 70 | 18 | 2.5 | 72 | Y180M-4 18.5KW |
| 160 | 100 | 4.5 | 85 | 25 | 2.5 | |||||
| 200 | 130 | 5 | 100 | 32 | 3 | |||||
| HCZ80-400 | | | | | | 75 | 30 | 2.5 | 63 | Y225S-4 37KW |
| | | | 90 | 40 | 2.5 | |||||
| | | | 100 | 50 | 3 | |||||
| HCZ100-200 | 150 | 61 | 4.5 | 81 | Y250M-2 55KW | 60 | 15.3 | 2.5 | 80 | Y132M-4 7.5KW |
| 200 | 50 | 5 | 100 | 12.5 | 2.9 | |||||
| 240 | 41 | 5.8 | 120 | 10.3 | 3.6 | |||||
| HCZ100-250 | 120 | 90 | 3.7 | 81.5 | Y280M-2 90KW | 60 | 22.5 | 2 | 75 | Y160M-4 11KW |
| 200 | 80 | 4.5 | 100 | 20 | 2.3 | |||||
| 240 | 73 | 5.5 | 120 | 18.3 | 3 | |||||
| HCZ100-315 | 120 | 132.5 | 4 | 75.5 | Y315M1-2 132KW | 60 | 33.5 | 2.5 | 72 | Y180M-4 18.5KW |
| 200 | 125 | 4.5 | 100 | 32 | 2.5 | |||||
| 240 | 120 | 5 | 120 | 30.5 | 3 | |||||
| HCZ100-400 | | | | | | 60 | 52 | 2.5 | 70 | Y225S-4 37KW |
| | | | 100 | 50 | 2.5 | |||||
| | | | 120 | 58.5 | 3 | |||||
| HCZ125-250 | | | | | | 120 | 23 | 2.5 | 84 | Y180L-4 22KW |
| | | | 200 | 20 | 2.8 | |||||
| | | | 240 | 18 | 3 | |||||
| HCZ125-315 | | | | | | 120 | 35.6 | 3 | 79 | Y225S-4 37KW |
| | | | 200 | 32 | 3.5 | |||||
| | | | 240 | 29.4 | 4 | |||||
| HCZ125-400 | | | | | | 120 | 55.8 | 3 | 74.5 | Y280S-4S 75KW |
| | | | 200 | 50 | 3.5 | |||||
| | | | 240 | 47 | 4 | |||||
| HCZ150-250 | | | | | | 240 | 23 | 3 | 85 | Y225M-4 45KW |
| | | | 400 | 20 | 3.5 | |||||
| | | | 460 | 18 | 4 | |||||
| 泵型号 | 泵额定转速n=2900r/min | 泵额定转速n=1450r/min | ||||||||
| 流量 | 扬程 | 汽蚀余量 | 效率 | 介质比重为1.35时 配用电机功率及型号 | 流量 | 扬程 | 汽蚀余量 | 效率 | 介质比重为1.35 时配用电机功率及型号 | |
| m3/h | m | m | % | m3/h | m | m | % | |||
| HCZ150-315 | | | | | | 240 | 35.6 | 3 | 82.5 | Y280S-4 75KW |
| | | | 400 | 32 | 3.5 | |||||
| | | | 460 | 29.4 | 4 | |||||
| HCZ150-400 | | | | | | 240 | 55.8 | 3 | 80 | Y315S-4 110KW |
| | | | 400 | 50 | 3.5 | |||||
| | | | 460 | 47 | 4 | |||||
| HCZ150-500 | | | | | | 340 | 50 | 3.5 | 78 | Y315M2-4 160KW |
| | | | 360 | 65 | 4 | |||||
| | | | 400 | 70 | 4.3 | |||||
| HCZ200-250 | | | | | | 500 | 10 | 3.5 | 85 | Y225S-4 37KW |
| | | | 540 | 11 | 4.2 | |||||
| | | | 600 | 12 | 4.5 | |||||
| HCZ200-315 | | | | | | 500 | 13 | 4.5 | 83.5 | Y280S-4S 75KW |
| | | | 600 | 20 | 4.5 | |||||
| | | | 650 | 24 | 5 | |||||
| HCZ200-400 | | | | | | 500 | 40 | 4.5 | 84 | Y315M2-4 18.5KW |
| | | | 550 | 45 | 4.8 | |||||
| | | | 650 | 52 | 5 | |||||
| HCZ200-500 | | | | | | 450 | 40 | 4.5 | 81.5 | |
| | | | 550 | 55 | 4.8 | |||||
| | | | 650 | 65 | 5 | |||||
| HCZ250-315 | | | | | | 800 | 16 | 4.5 | 86 | |
| | | | 900 | 20 | 5 | |||||
| | | | 950 | 22 | 5.5 | |||||
| HCZ250-400 | | | | | | 800 | 24 | 4.9 | 83 | |
| | | | 900 | 38 | 5 | |||||
| | | | 1000 | 44 | 5.5 | |||||
| HCZ250-500 | | | | | | 850 | 45 | 5.5 | 85 | |
| | | | 1000 | 55 | 5.5 | |||||
| | | | 1200 | 80 | 6 | |||||
| HCZ300-400 | | | | | | 1300 | 20 | 5.5 | 87 | |
| | | | 1400 | 30 | 5.5 | |||||
| | | | 1500 | 40 | 6 | |||||
| HCZ300-500 | | | | | | 1100 | 40 | 5.5 | 83.5 | |
| | | | 1300 | 50 | 5.5 | |||||
| | | | 1500 | 60 | 6 | |||||
