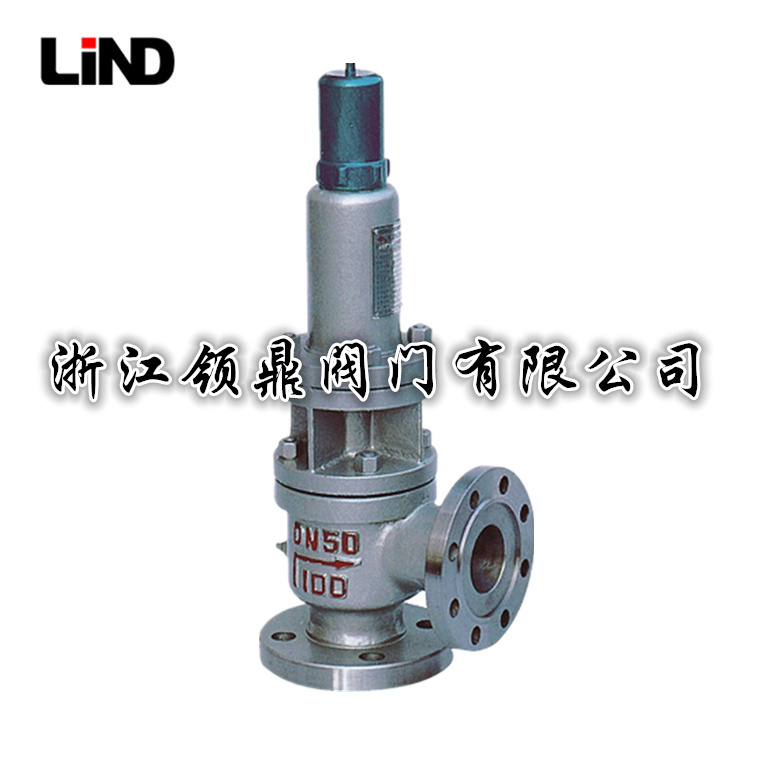

| 标准 | 国标 |
|---|---|
| 材质 | 碳钢 |
| 公称通径 | 20-200（mm） |
| 结构形式 | 弹簧式 |
| 连接形式 | 法兰 |
| 流动方向 | 单向 |
| 适用介质 | 空气、水、氮氢混合气等 |
| 形态 | 角式 |
| 零部件及配件 | 配件 |
| 压力环境 | 常压 |
| 阀瓣开启高度 | 全启式安全阀 |
| 类型(通道位置) | 直角式 |
| 阀体构造 | 不封闭式 |
| 品牌 | 浙江领鼎 |
| 型号 | A40Y |
| 加工定制 | 是 |
A40Y-C适用于工作温度≤400℃、A40Y-I≤450℃的空气、水、氮氢混合气等介质的设备或管路上， A40Y-P适用于工作温度≤300℃有腐蚀性介质的设备或管路上，作为超压保护装置。

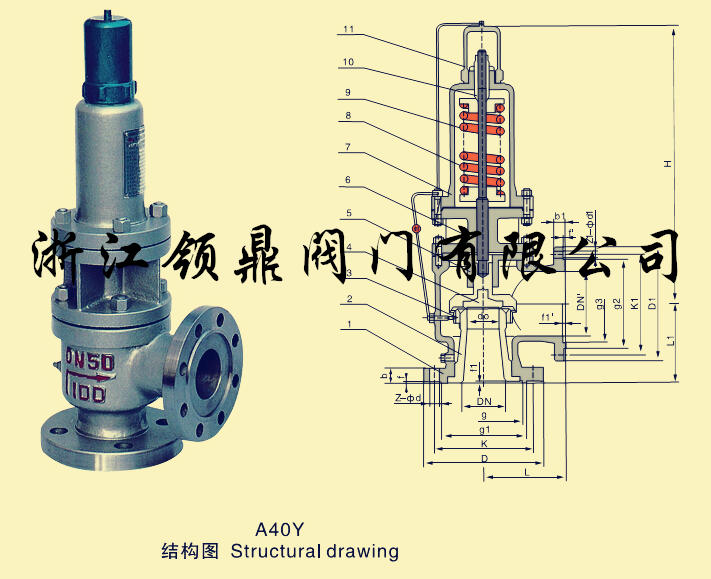

主要零部件材料
NO. | 零件名称 | A40Y-C 材料 | A40Y-P材料 | A40Y-I材料 |
1 | 阀体 | WCB | ZG1Cr18Ni9Ti | ZG1Cr5Mo |
2 | 阀座 | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
3 | 调节环 | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
4 | 阀瓣 | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
5 | 导向套 | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni9Ti |
6 | 散热器 | ZG230-450 | ZG230-450 | ZG230-450 |
7 | 阀盖 | ZG230-450 | ZG230-450 | ZG230-450 |
8 | 弹簧 | 50CrVA | 50CrVA包覆氟塑料 | 50CrVA包覆氟塑料 |
9 | 阀杆 | 2Cr13 | 1Cr18Ni9Ti | 2Cr13 |
10 | 调整螺杆 | 45 | 1Cr18Ni9Ti | 2Cr13 |
11 | 阀帽 | ZG200-400 | ZG200-400 | ZG200-400 |
主要外形尺寸及连接尺寸
,型号 | 公称 | do | D | K | g | g1 | b | f | f1 | Z-ød | DN' | D1 | K1 | g3 | g2 | b1 | f' | f1' | Z1-ød1 | L | L1 | ≈H |
A40Y-16C | 20 | 15 | 105 | 75 |
| 55 | 16 | 2 |
| 4-14 | 25 | 115 | 85 |
| 65 | 16 | 2 |
| 4-14 | 110 | 95 | 518 |
25 | 16 | 115 | 85 |
| 65 | 16 | 2 |
| 4-14 | 32 | 140 | 100 |
| 78 | 18 | 2 |
| 4-18 | 110 | 95 | 518 | |
32 | 20 | 140 | 100 |
| 78 | 18 | 2 |
| 4-18 | 40 | 150 | 110 |
| 85 | 18 | 3 |
| 4-18 | 115 | 100 | 518 | |
40 | 25 | 150 | 110 |
| 85 | 18 | 3 |
| 4-18 | 50 | 165 | 125 |
| 100 | 20 | 3 |
| 4-18 | 120 | 110 | 579 | |
50 | 32 | 165 | 125 |
| 100 | 20 | 3 |
| 4-18 | 65 | 185 | 145 |
| 120 | 20 | 3 |
| 4-18 | 135 | 120 | 639 | |
65 | 40 | 185 | 145 |
| 120 | 20 | 3 |
| 4-18 | 80 | 200 | 160 |
| 135 | 20 | 3 |
| 8-18 | 160 | 140 | 671 | |
80 | 50 | 200 | 160 |
| 135 | 20 | 3 |
| 8-18 | 100 | 220 | 180 |
| 155 | 22 | 3 |
| 8-18 | 170 | 135 | 676 | |
100 | 65 | 220 | 180 |
| 155 | 20 | 3 |
| 8-18 | 125 | 250 | 210 |
| 185 | 22 | 3 |
| 8-18 | 195 | 175 | 787 | |
125 | 80 | 250 | 210 |
| 185 | 22 | 3 |
| 8-18 | 150 | 285 | 240 |
| 210 | 24 | 3 |
| 8-23 | 210 | 190 | 977 | |
150 | 100 | 285 | 240 |
| 210 | 24 | 3 |
| 8-23 | 175 | 310 | 270 |
| 240 | 26 | 3 |
| 8-23 | 255 | 230 | 1035 | |
200 | 125 | 340 | 295 |
| 265 | 26 | 3 |
| 12-23 | 250 | 405 | 355 |
| 320 | 30 | 3 |
| 12-26 | 300 | 260 | 1193 | |
A40Y-25C | 20 | 15 | 105 | 75 |
| 55 | 16 | 2 |
| 4-14 | 25 | 115 | 85 |
| 65 | 16 | 2 |
| 4-14 | 110 | 95 | 518 |
25 | 16 | 115 | 85 |
| 65 | 16 | 2 |
| 4-14 | 32 | 140 | 100 |
| 78 | 18 | 2 |
| 4-18 | 110 | 95 | 518 | |
32 | 20 | 140 | 100 |
| 78 | 18 | 2 |
| 4-18 | 40 | 150 | 110 |
| 85 | 18 | 3 |
| 4-18 | 115 | 100 | 518 | |
40 | 25 | 150 | 110 |
| 85 | 18 | 3 |
| 4-18 | 50 | 165 | 125 |
| 100 | 20 | 3 |
| 4-18 | 120 | 110 | 579 | |
50 | 32 | 165 | 125 |
| 100 | 20 | 3 |
| 4-18 | 65 | 185 | 145 |
| 120 | 20 | 3 |
| 4-18 | 135 | 120 | 639 | |
65 | 40 | 185 | 145 |
| 120 | 22 | 3 |
| 8-18 | 80 | 200 | 160 |
| 135 | 20 | 3 |
| 8-18 | 160 | 140 | 671 | |
80 | 50 | 200 | 160 |
| 135 | 22 | 3 |
| 8-18 | 100 | 220 | 180 |
| 155 | 22 | 3 |
| 8-18 | 170 | 135 | 676 | |
100 | 65 | 230 | 190 |
| 160 | 24 | 3 |
| 8-23 | 125 | 250 | 210 |
| 185 | 22 | 3 |
| 8-18 | 195 | 175 | 787 | |
125 | 80 | 270 | 220 |
| 188 | 28 | 3 |
| 8-26 | 150 | 285 | 240 |
| 210 | 24 | 3 |
| 8-23 | 210 | 190 | 977 | |
150 | 100 | 300 | 250 |
| 218 | 30 | 3 |
| 8-26 | 175 | 310 | 270 |
| 240 | 26 | 3 |
| 8-23 | 255 | 230 | 1035 | |
A40Y-40C | 20 | 10 | 125 | 90 | 51 | 68 | 22 | 2 | 4 | 4-18 | 25 | 115 | 85 | 58 | 65 | 16 | 2 | 4 | 4-14 | 96 | 85 | 384 |
25 | 16 | 140 | 100 | 58 | 78 | 22 | 2 | 4 | 4-18 | 32 | 140 | 100 | 66 | 78 | 18 | 2 | 4 | 4-18 | 110 | 100 | 384 | |
32 | 20 | 155 | 110 | 66 | 82 | 24 | 2 | 4 | 4-23 | 40 | 150 | 110 | 76 | 85 | 18 | 3 | 4 | 4-18 | 130 | 110 | 396 | |
40 | 25 | 170 | 125 | 76 | 95 | 2 | 3 | 4 | 4-23 | 50 | 165 | 125 | 88 | 100 | 20 | 3 | 4 | 4-18 | 130 | 120 | 426 | |
50 | 32 | 180 | 135 | 88 | 105 | 26 | 3 | 4 | 4-23 | 65 | 185 | 145 | 110 | 120 | 22 | 3 | 4 | 8-18 | 135 | 130 | 504 | |
65 | 40 | 205 | 165 | 110 | 130 | 28 | 3 | 4 | 8-23 | 80 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 175 | 160 | 603 | |
80 | 50 | 215 | 170 | 121 | 140 | 30 | 3 | 4 | 8-23 | 100 | 235 | 190 | 150 | 160 | 24 | 3 | 5 | 8-23 | 175 | 160 | 613 | |
100 | 65 | 250 | 200 | 150 | 168 | 32 | 3 | 4.5 | 8-26 | 125 | 270 | 220 | 176 | 188 | 28 | 3 | 5 | 8-25 | 195 | 195 | 813 | |
150 | 100 | 345 | 280 | 176 | 240 | 38 | 3 | 4.5 | 8-34 | 200 | 375 | 320 | 260 | 282 | 38 | 3 | 5 | 12-30 | 280 | 265 | 1064 | |
A40Y-100C | 20 | 10 | 125 | 90 | 204 | 68 | 22 | 2 | 4 | 4-18 | 25 | 115 | 85 | 58 | 65 | 16 | 3 | 4 | 4-14 | 96 | 85 | 384 |
25 | 16 | 140 | 100 | 51 | 78 | 24 | 2 | 4 | 4-18 | 32 | 140 | 100 | 66 | 78 | 18 | 2 | 4 | 4-18 | 110 | 100 | 384 | |
32 | 20 | 155 | 110 | 58 | 82 | 24 | 2 | 4 | 4-23 | 40 | 150 | 110 | 76 | 85 | 18 | 3 | 4 | 4-18 | 130 | 110 | 396 | |
40 | 25 | 170 | 125 | 66 | 95 | 26 | 3 | 4 | 4-23 | 50 | 165 | 125 | 88 | 100 | 20 | 3 | 4 | 4-18 | 135 | 120 | 426 | |
50 | 32 | 195 | 145 | 76 | 112 | 28 | 3 | 4 | 4-26 | 65 | 185 | 145 | 110 | 120 | 22 | 3 | 4 | 8-18 | 135 | 130 | 504 | |
65 | 40 | 220 | 170 | 88 | 138 | 32 | 3 | 4 | 8-26 | 80 | 200 | 160 | 121 | 135 | 22 | 3 | 4 | 8-18 | 175 | 160 | 603 | |
80 | 50 | 230 | 180 | 110 | 148 | 34 | 3 | 4 | 8-26 | 100 | 235 | 190 | 150 | 160 | 24 | 3 | 4 | 8-23 | 175 | 160 | 613 | |
100 | 65 | 265 | 210 | 121 | 172 | 38 | 3 | 5 | 8-30 | 125 | 270 | 220 | 176 | 188 | 28 | 3 | 5 | 8-25 | 195 | 195 | 813 | |
150 | 100 | 355 | 290 | 150 | 250 | 46 | 3 | 5 | 12-34 | 200 | 375 | 320 | 260 | 282 | 38 | 3 | 5 | 12-30 | 280 | 265 | 1064 |
